GB/T 5312 320 360 410 460 490 Carbon Steel Tube Carbon-Manganese Steel Seamless Steel Tubes And Pipes For Ship
Introduction
GB/T 5312 is a Chinese standard that specifies the requirements for carbon-manganese steel seamless steel tubes and pipes used in shipbuilding applications. This standard covers various steel grades, including 320, 360, 410, 460, and 490. These tubes and pipes are widely used in the construction of ships due to their excellent mechanical properties and high resistance to corrosion.
Material and Specification
The GB/T 5312 standard outlines the material and specification requirements for carbon-manganese steel seamless steel tubes and pipes for shipbuilding. The tubes and pipes manufactured under this standard are made from carbon steel with added manganese, which enhances their strength and toughness. The standard specifies the following requirements:
- Material: Carbon-manganese steel
- Specification: Seamless steel tubes and pipes
- Steel Grades: 320, 360, 410, 460, 490
Key Features
The GB/T 5312 carbon-manganese steel tubes and pipes for shipbuilding offer several key features that make them suitable for marine applications:
- High Strength: The addition of manganese improves the strength and toughness of the steel, making it ideal for withstanding the harsh conditions encountered in shipbuilding.
- Corrosion Resistance: These tubes and pipes exhibit excellent resistance to corrosion, ensuring their longevity in marine environments.
- Seamless Construction: The seamless manufacturing process ensures a uniform structure and eliminates the risk of weak points or leakage.
- Precision Dimension: The tubes and pipes conform to precise dimensional tolerances, ensuring compatibility and ease of installation.
Chemical Composition
The following table presents the chemical composition of the carbon-manganese steel tubes and pipes according to GB/T 5312:
| Steel Grade | Chemical Composition (%) |
| 320 | C: ≤0.16, Mn: 0.40-0.70 |
| 360 | C: ≤0.17, Mn: 0.40-0.80 |
| 410 | C: ≤0.21, Mn: 0.45-0.80 |
| 460 | C: ≤0.24, Mn: 0.45-0.80 |
| 490 | C: ≤0.24, Mn: 0.45-0.80 |
Mechanical Properties
The mechanical properties of the carbon-manganese steel tubes and pipes, as specified by GB/T 5312, are presented in the following table:
| Steel Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
| 320 | ≥410 | ≥245 | ≥25 |
| 360 | ≥460 | ≥275 | ≥22 |
| 410 | ≥510 | ≥305 | ≥20 |
| 460 | ≥560 | ≥335 | ≥17 |
| 490 | ≥610 | ≥365 | ≥14 |
Steel Grade and Application
The different steel grades specified in GB/T 5312 have various applications in shipbuilding. Here are the steel grades and their corresponding applications:
- 320: Suitable for general shipbuilding purposes.
- 360: Used in the construction of hulls and superstructures.
- 410: Ideal for manufacturing marine boilers and pressure vessels.
- 460: Used in the fabrication of marine structural components.
- 490: Suitable for high-strength shipbuilding applications.
Possible Alternative Grades
While GB/T 5312 specifies the carbon-manganese steel grades for shipbuilding, there are alternative grades available from other international standards. Some possible alternative grades include ASTM A106, DIN 17175, and JIS G3456. These standards offer similar carbon steel tubes and pipes suitable for shipbuilding, but it is important to consult the specific requirements and regulations of the intended application before selecting an alternative grade.
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
|
|

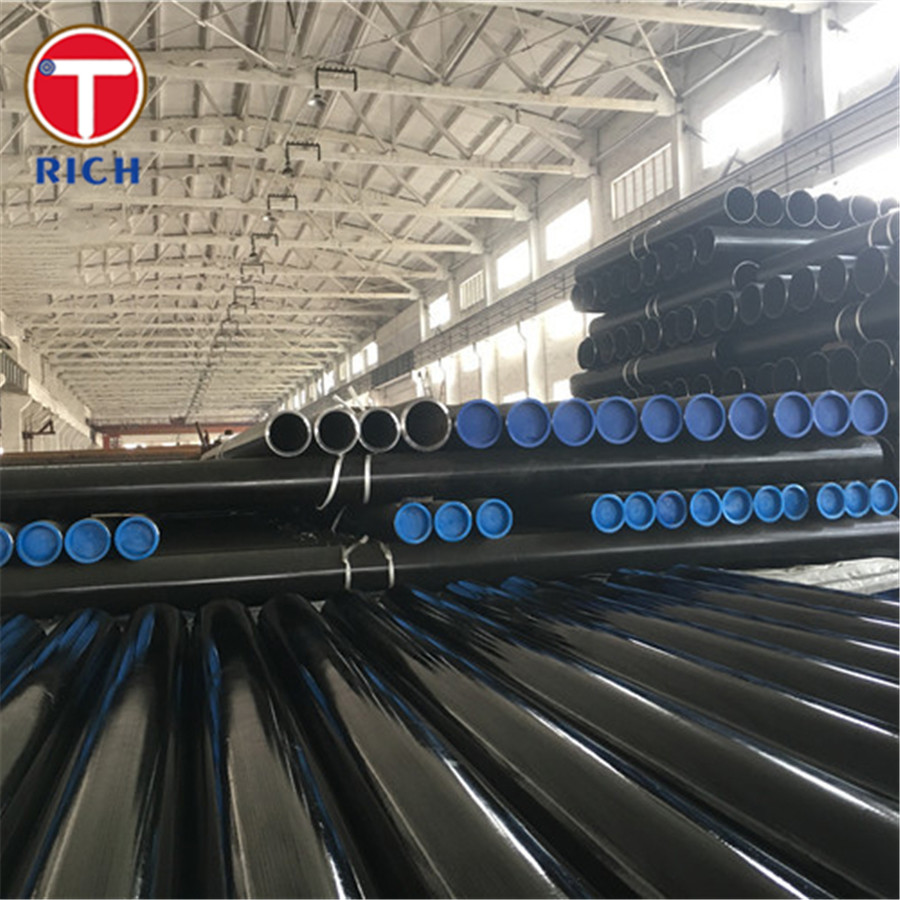

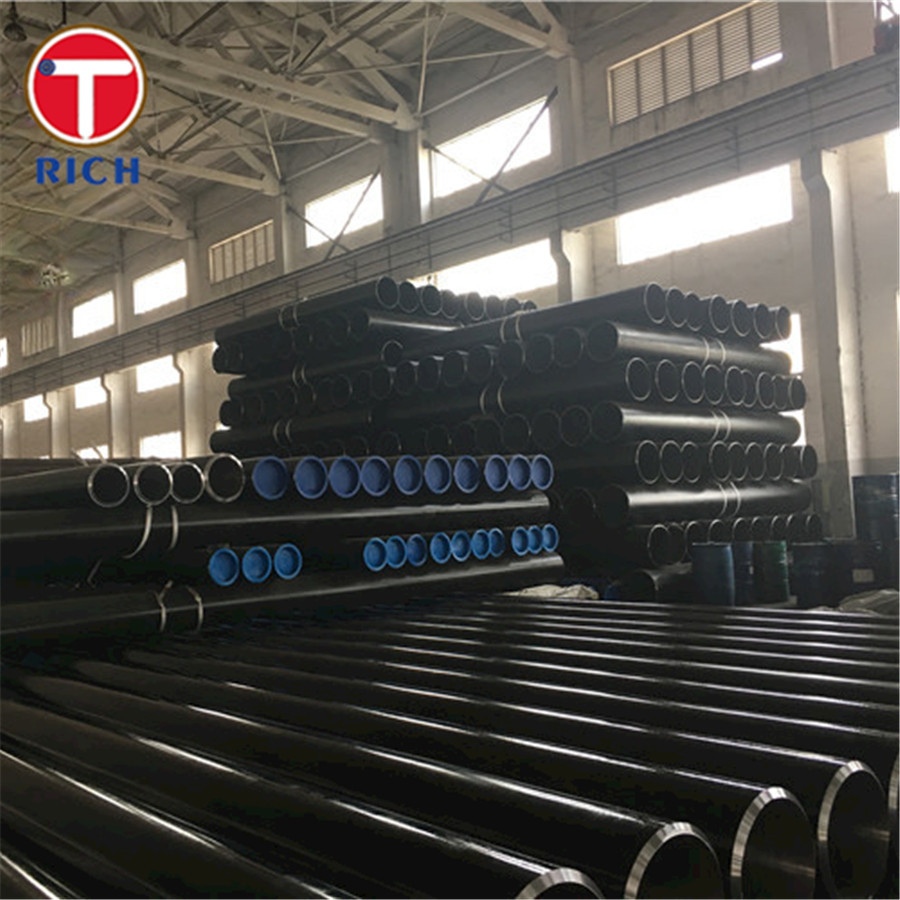

GB/T 5312 320 Carbon Steel Tube Carbon-Manganese Steel Seamless Steel Tubes And Pipes For Ship Images
|
